Wholesale BWG 10 12 16 18 Guage PVC coated GI Wire PVC Coated Iron Wire Manufacturers

PVC coated wire refers to a type of wire that is coated with a layer of polyvinyl chloride (PVC) to provide insulation, protection, and enhance its properties. The PVC coating adds a durable and smooth surface to the wire while providing resistance to corrosion, moisture, and abrasion.Both PVC coated GI wire and PVC coated iron wire share similar advantages, including corrosion resistance, insulation, durability, and aesthetic appeal. However, the presence of galvanized coating in PVC coated GI wire offers superior corrosion resistance, making it advantageous in more demanding or outdoor applications. PVC coated iron wire is suitable for less corrosive environments or applications where cost-effectiveness is a priority.

Category:

Products

IRON WIRE SERIES

PVC Coated Wire

francis@sjzsunshine.com

Feedback

Wholesale BWG 10 12 16 18 Guage PVC coated GI Wire PVC Coated Iron Wire Manufacturers

TOP

Wholesale BWG 10 12 16 18 Guage PVC coated GI Wire PVC Coated Iron Wire Manufacturers

What is PVC coated wire?

PVC coated Wire Description

PVC coated Wire Brand	SUNSHINE
Materials before PVC coating:	steel wire, galvanized wire, redrawing wire,annealed wire, etc.
Surface:	plastic coating.
Color:	green, blue, gray, white and black; other colors also available on request.
Average tensile strength:	350 N/mm²-900 N/mm².
Elongation:	8%-15%.
Wire diameter before coating:	0.6 mm-4.0 mm (8-23 gauge).
Wire diameter with coating:	0.9 mm-5.0 mm (7-20 gauge)
Thickness:	0.4 mm-1.5 mm
Wire diameter tolerance:	±0.05 mm.

wire gauge size	SWG(mm)	BWG(mm)	metric(mm)
8	4.06	4.19	4
9	3.66	3.76	-
10	3.25	3.4	3.5
11	2.95	3.05	3
12	2.64	2.77	2.8
13	2.34	2.41	2.5
14	2.03	2.11	-
15	1.83	1.83	1.8
16	1.63	1.65	1.65
17	1.42	1.47	1.4
18	1.22	1.25	1.2
19	1.02	1.07	1

PVC Production Process

PVC Coated GI Wire:

PVC coated GI (Galvanized Iron) wire refers to a wire made of galvanized iron or steel that is further coated with a layer of PVC. The galvanized iron wire is first treated with a coating of zinc to enhance its corrosion resistance. It is then coated with PVC to provide additional protection, insulation, and aesthetic appeal. PVC coated GI wire is widely used in various applications that require strength, durability, and resistance to corrosion. Common applications include wire mesh, fencing, construction reinforcement, and hanging signs.

PVC Coated Iron Wire:

PVC coated iron wire is a type of wire made from iron that is coated with PVC. It is similar to PVC coated GI wire, but it lacks the galvanized zinc coating. While it may not offer as high a level of corrosion resistance as the galvanized counterpart, PVC coated iron wire still provides enhanced protection against moisture, abrasion, and environmental factors. It is commonly used in applications such as wirecraft and crafts, floral arrangements, and general-purpose bundling or fastening.

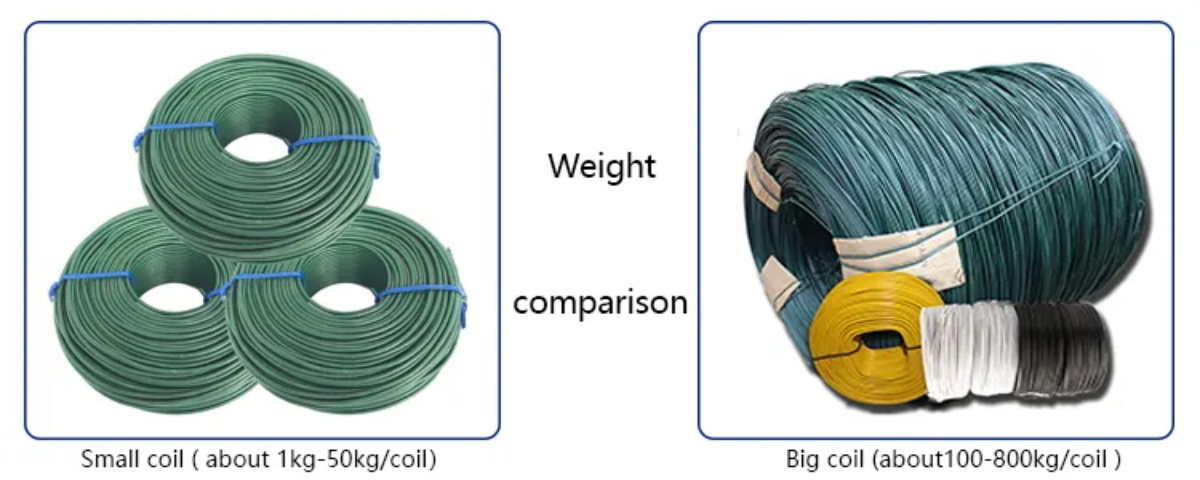

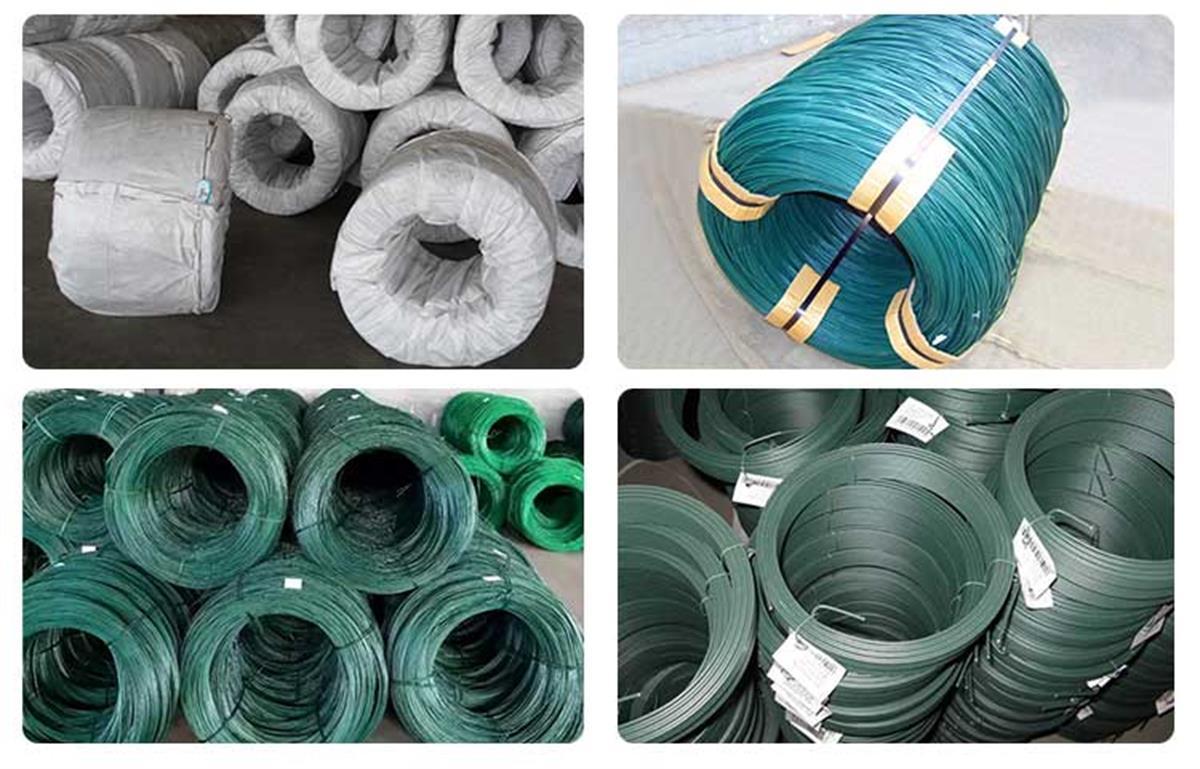

PVC Coated Wire Packing

PVC Coated Wire Usage

PVC coated wire is widely used in various industries and applications. In the construction industry, it is commonly used for wiring installations, such as electrical wiring, HVAC systems, and communication cables. In agriculture, PVC coated wire is used for fencing, trellises, and other applications that require durability and weather resistance. Additionally, it finds applications in industries such as automotive, manufacturing, and marine for various wiring and fastening needs.

About SUNSHINE

Our main products include Nails, Iron wire, Wire mesh, Steel wire rope, Galvanized steel coil, Galvanized steel sheet, PPGI, Steel tube, and Pipe. Over the years, we have grown into a comprehensive enterprise through our dedicated efforts.

Whether you have specific requirements or need assistance in selecting the right products, our dedicated team is here to help. Contact us today and let SUNSHINE be your trusted partner for all your hardware and construction material needs.

FAQ

What do you want to know?
Q:What service can you provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese
Q:Are you a manufacturer?
A:Yes,we have specialized in this field for about 15 years experience.
Q:Could you provide sample?
A:Yes,we can provide sample with our catalogue. （But the courier charge will on your side）
Q:Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
Q:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers' benefit. 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
