China Wholesale 8 12 14 16 18 Gauge GI Iron Tie Wire in Coils

GI Iron Wire is an indispensable material due to its exceptional strength, durability, and corrosion resistance. Its wide range of applications in construction, agriculture, industrial manufacturing, and packaging showcases its versatility. With the industrial galvanization process, GI Iron Wire provides a reliable solution for various industries, ensuring longevity and performance. Whether it is for reinforcing concrete or supporting crops, GI Iron Wire proves to be a reliable and cost-effective choice.

Category:

Products

IRON WIRE SERIES

Galvanized Wire

francis@sjzsunshine.com

Feedback

China Wholesale 8 12 14 16 18 Gauge GI Iron Tie Wire in Coils

TOP

China Wholesale 8 12 14 16 18 Gauge GI Iron Tie Wire in Coils

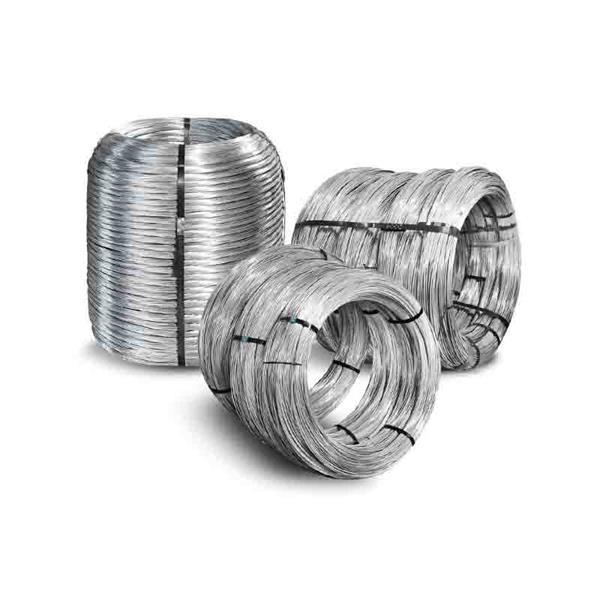

GI Iron Tie Wire Introduction

GI Iron Wire, also known as Galvanized Iron Wire, is a widely used material in various industries. It is renowned for its durability, strength, and corrosion resistance. Combines the strength and durability of mild steel with the protective qualities of galvanized coating. This makes it a versatile and reliable material that finds diverse applications across various industries.

GI Low Carbon Steel Binding Wire Specification

GI Mild Steel Wire Brand	SUNSHINE
Model Number	galvanized low carbon steel wire
Material	high quality iron wire Q195 Q245
Surface Treatment	Hot-dipped Galvanized/Electro-Galvanized
Processing Service	Welding, Bending, Cutting
Wire Diameter	0.56mm-5mm
Surface	Galvanised Zinc
Coil weight	5kg --- 500 Kg

GI Low Carbon Steel Binding Wire Size Gauge

Wire Gauge	SWG(mm)	BWG(mm)	Metric(mm)
8	4.05	4.19	4.00
9	3.66	3.76	4.00
10	3.25	3.40	3.50
11	2.95	3.05	3.00
12	2.64	2.77	2.80
13	2.34	2.41	2.50
14	2.03	2.11	2.50
15	1.83	1.83	1.80
16	1.63	1.65	1.65
17	1.42	1.47	1.40
18	1.22	1.25	1.20
19	1.02	1.07	1.00
20	0.91	0.84	0.90
21	0.81	0.81	0.80
22	0.71	0.71	0.70

GI Iron Tie Wire Thickness

The Zinc Thickness about GI iron wire depends on the manufacyuring process.Hot-dipped galvanized iron wire zinc thickness is 50-60g/m².Electro-galvanized iron wire zinc thickness is 15-20g/m².

Hot-dip GI wire

Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing, annealing and coiling. It’s mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.

Hot-dipped Galvanized Iron Wire Brand	SUNSHINE
Wire Diameter:	0.5mm-5.0mm
Zinc coat:	50-60g/m²
Tensile strength:	300-500N/mm²
Elongation:	15%

Electro-GI wire

Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.

Electro GI Iron Wire Brand	SUNSHINE
Wire Diameter:	0.5mm-5.0mm
Zinc coat:	15-20g/m²
Tensile strength:	300-500N/mm²
Elongation:	15%

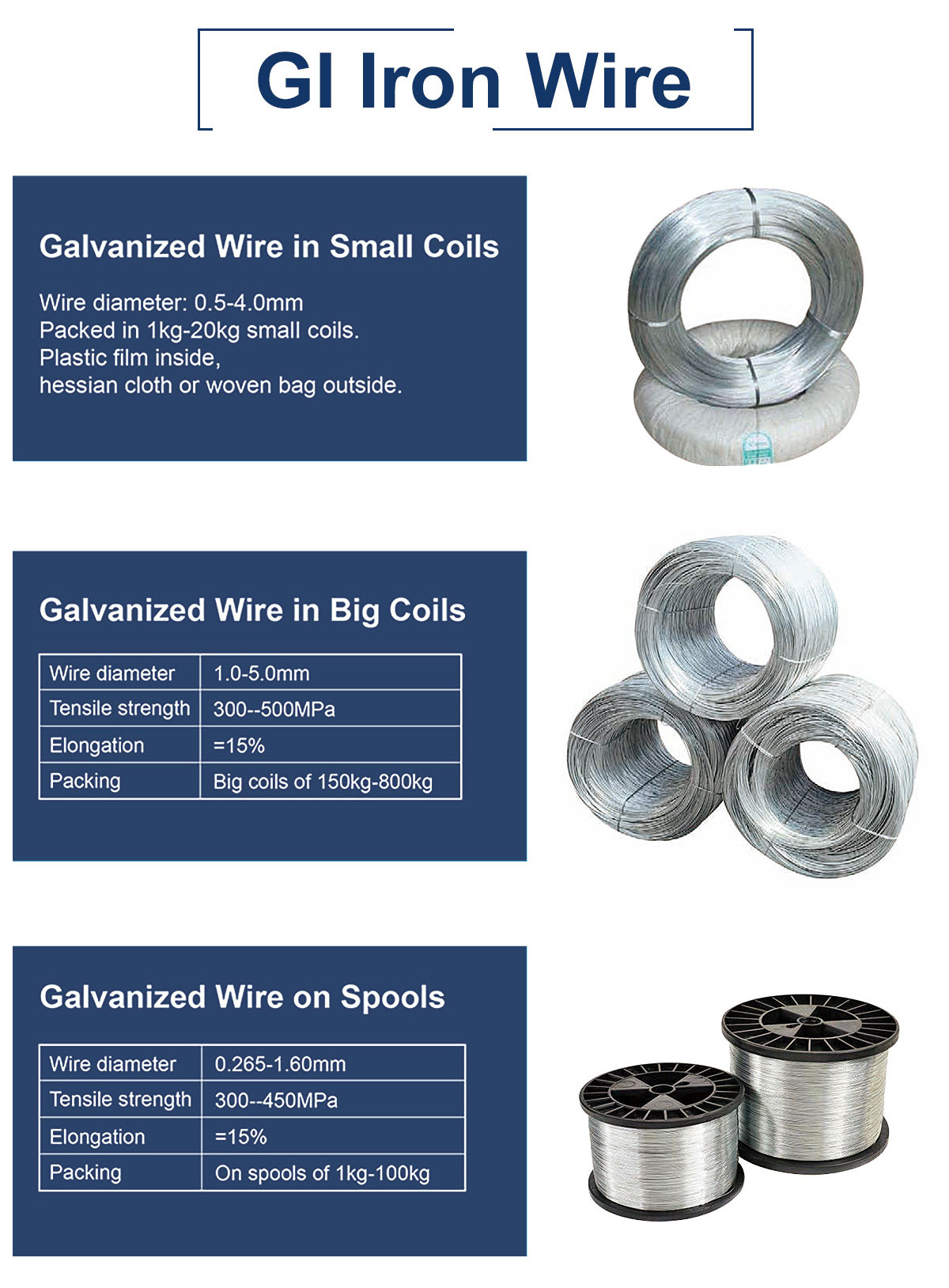

Different Types about GI Mild Steel Wire in Coils

GI Iron Binding Wire Feature

1. Strength and Durability: The hot-dip galvanization process enhances the strength of GI Iron Wire, making it suitable for demanding applications that require robust materials. It can withstand heavy loads and resist deformation.
2. Corrosion Resistance: The zinc coating acts as a shield, protecting the wire from rust and corrosion even in harsh environments, such as high humidity or exposure to chemicals.
3. Versatility: GI Iron Wire is highly versatile, allowing for a wide range of applications across different industries. It can be easily manipulated and formed according to specific needs.

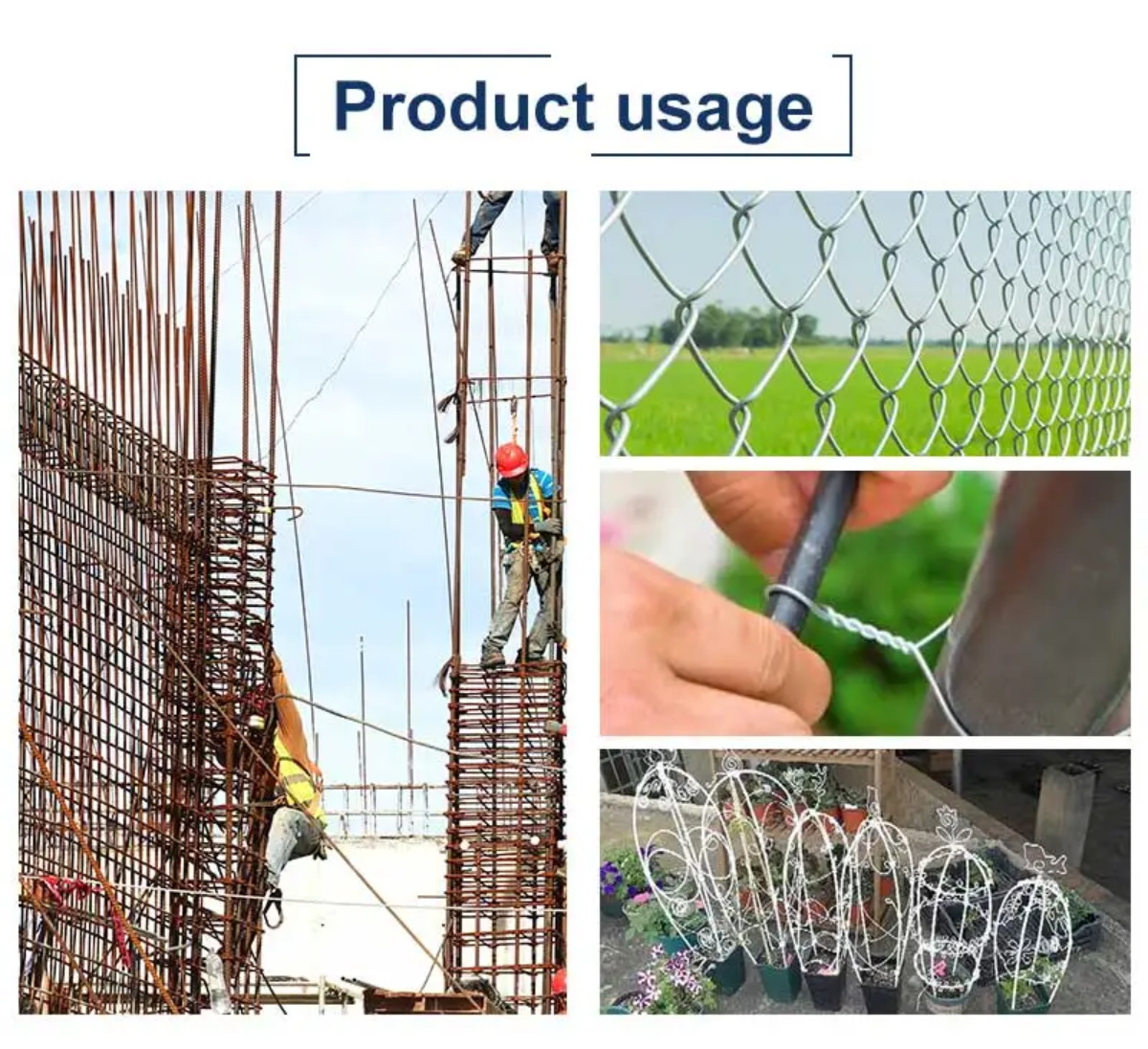

GI Low Carbon Steel Wire Application

1. Construction Industry: GI Iron Wire is widely utilized in the construction sector for reinforcing concrete structures, forming wire mesh for concrete slabs, and tying rebars together. It enhances the strength and stability of buildings, bridges, and highways.
2. Agricultural Sector: It finds applications in agricultural activities, such as plant support, vine training, and fencing. GI Iron Wire is used to construct trellises, cages, and fences to support and protect crops.
3. Industrial Manufacturing: With its high strength and versatility, GI Iron Wire is utilized in the production of wire rope, springs, wire mesh, and wire containers. It is also used as a core material for manufacturing welded wire mesh panels.
4. Packaging and Binding: GI Iron Wire is employed for packaging or tie up materials, securing bales, and binding various products together due to its strength, flexibility, and durability.

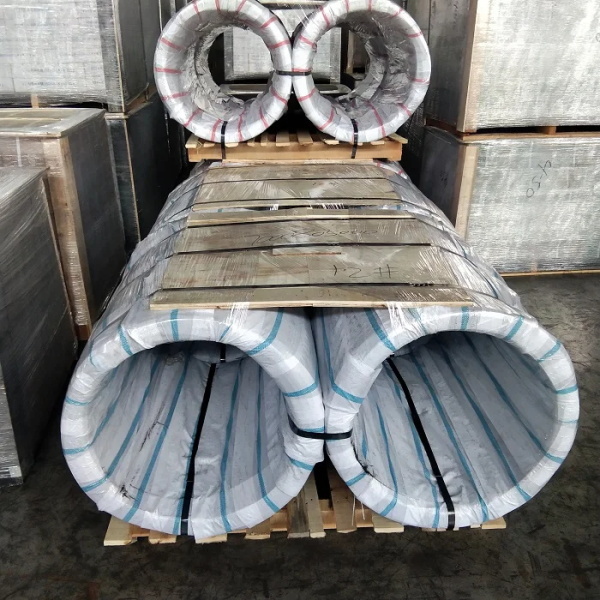

Packing

Package

A.1-50kg/coil or big coil.Inside with plastic film,and outside with woven bag.

B.1-50kg/coil or big coil.Inside with plastic film,and outside with hessian.

C.Wire diameter<0.6mm in spool,than in carton.

China Wholesale GI Low Carbon Steel Wire Manufacturers

SUNSHINE has own professional team and equipment to inspect product items such as material standard, wire size, weight,tensile strength, and other customer demand. Meanwhile, we could guaranteed the products quality as you expect.

Whether you have specific requirements or need assistance in selecting the right products, our dedicated team is here to help. Contact us today and let SUNSHINE be your trusted partner for all your hardware and construction material needs.

FAQ

What do you want to know?
Q:What service can you provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese
Q:Are you a manufacturer?
A:Yes,we have specialized in this field for about 15 years experience.
Q:Could you provide sample?
A:Yes,we can provide sample with our catalogue. （But the courier charge will on your side）
Q:Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
Q:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers' benefit. 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
