China ASTM BIS Bulk 9 12 Gauge Electro Galvanized Steel Wire Exporter

Electro-galvanized steel wire offers a range of benefits, including corrosion resistance, aesthetic appeal, and versatility. As a cost-effective and reliable solution, it finds applications in diverse industries such as fencing, construction, automotive, and crafts. The electroplating process ensures a uniform and precise coating thickness, enhancing its performance and appearance. Whether for durable fences, structural reinforcement, or creative projects, electro-galvanized steel wire demonstrates its value as a corrosion-resistant and versatile material in numerous applications.

Category:

Products

IRON WIRE SERIES

Galvanized Wire

francis@sjzsunshine.com

Feedback

China ASTM BIS Bulk 9 12 Gauge Electro Galvanized Steel Wire Exporter

TOP

China ASTM BIS Bulk 9 12 Gauge Electro Galvanized Steel Wire Exporter

ASTM BIS Bulk Electro Galvanized Steel Wire Introduction

ASTM (American Society for Testing and Materials) and BIS (Bureau of Indian Standards) play a critical role in establishing industry standards for galvanized steel wire. These organizations develop and publish specifications that ensure the quality, safety, and performance of galvanized steel wire in various applications.Galvanized high tensile strength steel wire is a type of wire that has undergone a galvanization process to enhance its corrosion resistance and durability. It is made from carbon steel wire, which is coated with a layer of zinc.

ASTM BIS Bulk Electro Galvanized Steel Wire Specification

Galvanized Steel Wire Brand	SUNSHINE
Model Number	galvanized steel wire
Material	high carbon steel 45#/SAE1045/C45
Surface Treatment	Hot-dipped Galvanized/Electro-Galvanized
Processing Service	Welding, Bending, Cutting
Wire Diameter	0.56mm-5mm
Surface	Galvanised Zinc
Coil weight	5kg --- 500 Kg
Standard	ASTM/BIS

Galvanized Steel Wire Gauge

#9 #10 #12 galvanized steel wire also called galvanized binding wire BWG9 BWG10 BWG12,9 10 12guage high tensile strength high carbon steel tying wire

Galvanized High Carbon Steel Wire Electro-Galvanizing Process

-Surface Preparation: The steel wire is cleaned thoroughly to remove any contaminants or oils, ensuring a clean and receptive surface for the zinc coating.
-Electroplating: The cleaned steel wire is immersed in an electrolyte solution containing zinc salts. A direct current is then applied, causing the zinc ions to be attracted and deposited onto the wire's surface.
-Thickness Control: The duration and voltage of the electroplating process are carefully controlled to achieve the desired thickness of the zinc coating. This allows for customization of the wire's properties based on specific application requirements.
-Finishing: After the electroplating process, the electro-galvanized steel wire may undergo additional processes such as drying, cooling, and cutting, depending on the intended application.

Electro Galvanized Steel Wire Details

Electro-galvanized steel wire is a type of galvanized wire that undergoes a specific electroplating process to obtain a protective zinc coating. This process involves applying a layer of zinc onto the surface of the steel wire through an electrochemical deposition method. The result is a wire with enhanced corrosion resistance, improved aesthetics, and a wide range of applications.

Electro Galvanized Steel Wire Brand	SUNSHINE
Wire Diameter:	0.5mm-5.0mm
Zinc coat:	15-20g/m²
Tensile strength:	300-500N/mm²
Elongation:	15%

Features of Electro-Galvanized Steel Wire

-Zinc Coating: Electro-galvanized steel wire has a relatively thinner zinc coating compared to hot-dip galvanized wire. The coating typically ranges from 5-25 microns, providing sufficient protection against corrosion.

-Corrosion Resistance: The zinc coating provides excellent protection against rust and corrosion, prolonging the lifespan of the wire and reducing the need for frequent replacements.

-Aesthetics: Electro-galvanized steel wire offers a visually appealing appearance, making it suitable for indoor applications where aesthetics are important.

-Versatility: Electro-galvanized steel wire can be easily formed and manipulated, allowing for a wide range of applications across industries such as construction, automotive, agriculture, and fencing.

-Cost-Effective: Electro-galvanized steel wire generally offers a more cost-effective solution compared to other corrosion-resistant materials, making it a popular choice for various applications.

ASTM BIS Galvanized Steel Wire

ASTM (American Society for Testing and Materials) and BIS (Bureau of Indian Standards) play a critical role in establishing industry standards for galvanized steel wire.ASTM and BIS standards for galvanized steel wire play a pivotal role in ensuring quality, reliability, and safety within the industry. By setting specifications for wire dimensions, coating thickness, tensile strength, and other key parameters, these organizations provide manufacturers and users with a common framework for product evaluation and selection. Adherence to these standards promotes interconnectivity, standardization, and trust, allowing for seamless integration across various applications and markets.

Applications of Electro-Galvanized Steel Wire:

-Fencing: Electro-galvanized steel wire is commonly used in fencing applications, providing durability, corrosion resistance, and an aesthetically pleasing appearance.
-Industrial Applications: It is utilized in the automotive industry for components such as springs, wire harnesses, and reinforcements due to its corrosion resistance and strength.
-Construction: Electro-galvanized steel wire finds application in construction as a reinforcement material in concrete structures, including precast panels, building foundations, and beams.
-Craft and DIY Projects: Its malleability and aesthetic appeal make electro-galvanized steel wire suitable for various artistic and DIY projects, such as wire sculptures, jewelry, and decorative items.

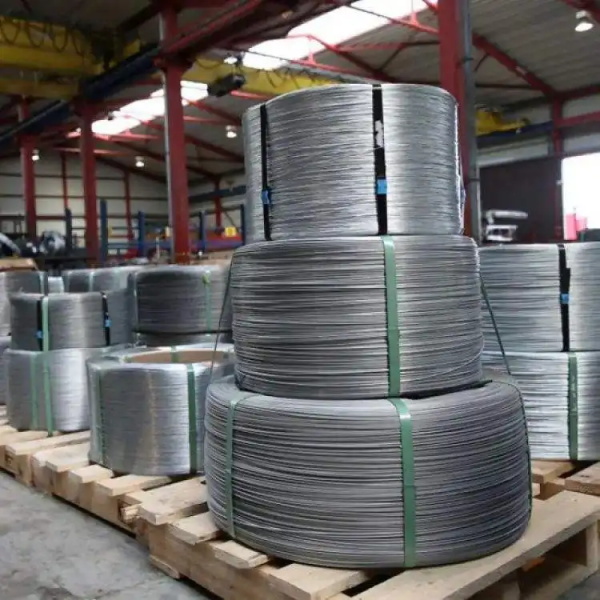

Packing

China Best Binding Electro-galvanized Steel Wire Factory

FAQ

What do you want to know?
Q:What service can you provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash; Language Spoken:English,Chinese
Q:Are you a manufacturer?
A:Yes,we have specialized in this field for about 15 years experience.
Q:Could you provide sample?
A:Yes,we can provide sample with our catalogue. （But the courier charge will on your side）
Q:Can we visit your factory?
A:Warmly welcome once we have your schedule we will pick you up .
Q:How do you make our business long-term and good relationship?
A:1.We keep good quality and competitive price to ensure our customers' benefit. 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
