China Construction Use SWG 6 7 8 10 Mild Steel GI Wire

GI mild steel wire offers a winning combination of strength, versatility, and corrosion resistance. Its application across industries, ranging from construction and manufacturing to agriculture and crafts, is a testament to its undeniable utility and reliability. With its durability, cost-effectiveness, and multitude of uses, GI mild steel wire remains a valuable asset in the modern world.

Category:

Products

IRON WIRE SERIES

Galvanized Wire

francis@sjzsunshine.com

Feedback

China Construction Use SWG 6 7 8 10 Mild Steel GI Wire

TOP

China Construction Use SWG 6 7 8 10 Mild Steel GI Wire

Mild Steel GI Wire Introduction

What is GI Iron Wire Means?GI mild steel wire is primarily made from low-carbon or mild steel, known for its strength, ductility, and affordability. To enhance its resistance to corrosion, the mild steel wire undergoes a galvanization process. Galvanization involves coating the wire with a layer of zinc, forming a protective barrier against rust and other forms of corrosion. This process can be achieved through hot-dip galvanizing or electro-galvanizing, depending on the desired specifications and application requirements.

GI Low Carbon Steel Construction Use Wire Specification

GI Mild Steel Wire Brand	SUNSHINE
Model Number	galvanized low carbon steel wire
Material	high quality iron wire Q195 Q245
Surface Treatment	Hot-dipped Galvanized/Electro-Galvanized
Processing Service	Welding, Bending, Cutting
Wire Diameter	0.56mm-5mm
Surface	Galvanised Zinc
Coil weight	5kg --- 500 Kg

GI Low Carbon Steel Construction Use Wire Size Gauge

No.	Diameter(mm)	Tensile Strength(n/mm2)	Zinc Thickness(g/m2)	Weight of unit coil(kg)
5.5~6#	5.00	300~1500	30~100	400~600
7#	4.57	300~1500	30~100	400~600
8#	4.19	300~1500	30~100	400~600
9#	3.76	300~1500	30~100	400~600
10#	3.40	300~1500	30~100	400~600
11#	3.05	300~1500	30~100	400~600
12#	2.77	300~1500	30~80	400~600
13#	2.41	300~1500	30~80	400~600
14#	2.11	300~1500	30~80	400~600
15#	1.83	300~1500	30~80	400~600
16#	1.65	300~1500	30~80	25~500
17#	1.47	300~1500	30~80	25~500
18#	1.24	300~1500	≥12	25~500
19#	1.07	300~1500	≥12	25~500
20#	0.89	300~1500	≥12	25~400
21#	0.81	300~1500	≥12	25~400
22#	0.71	300~1500	≥12	25~200
23#	0.64	300~1500	≥12	25~150
24#	0.56	300~1500	≥12	10~150
25#	0.51	300~1500	≥12	10~100
26#	0.46	300~450	≥12	10~50
27#	0.41	300~450	≥12	10~50
28#	0.36	300~450	≥12	10~50
29#	0.33	300~450	≥12	10~50
30#	0.30	300~450	≥12	5~20
30.5#	0.28	300~450	≥12	5~20

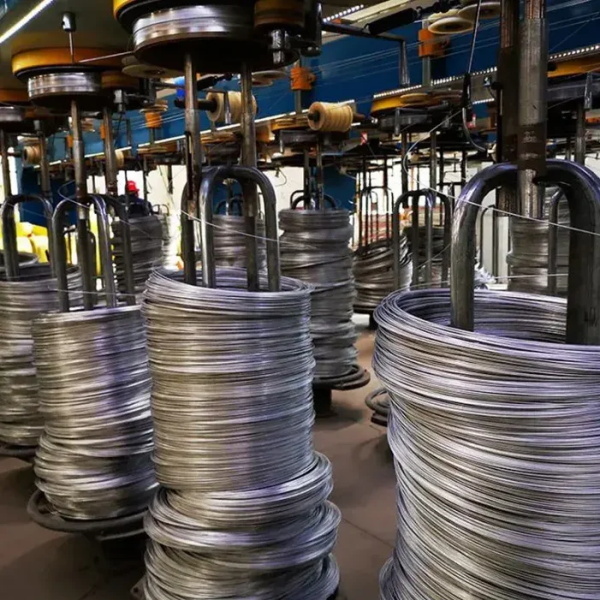

GI Low Carbon Steel Construction Use Wire Manufacturing Process

GI Iron Wire Feature

Corrosion resistance

Galvanized wire is divided into hot dipped alvanized wire and cold galvanized wire (electro galvanized wire). The maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.

Good plasticity

Galvanized iron wire is made with mild steel hard-drawn, and then galvanized.It is rust-resistant, and very versatile inapplications.
Galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire

Extensive use

Processing with low carbon steel wire, through drawing and electric galvanizing
Standard wire gauge from 8# to 16# binding of flowers as wire ties in the garden and yard, and wire mesh making as weaving wires.

GI Low Carbon Steel Construction Use Wire Application

Galvanized Iron (GI) wire is commonly used in the construction industry for various purposes. Here are some common applications of GI wire in construction:

-Tying Reinforcement Bars: GI wire is used to tie reinforcement bars together in concrete structures. It helps to secure the bars in place and maintain the desired spacing and alignment .

-Supporting Exposed Water Mains: In construction projects involving water mains, GI wire can be used to support the exposed water mains and prevent ground settlement or movement that could cause damage .

-Secondary Wiring Method: Some regional construction codes require the use of a secondary method of wiring, and GI wire can be used for this purpose .

-Furring Ceiling System: GI wire can be used in the assembly of furring ceiling systems, where it is used to fix gypsum boards on the surface of furring channels and GI angles.

GI Low Carbon Steel Wire also has other usage:

-Agriculture: GI mild steel wire is employed to create fences, enclosures, trellises, and supports for agricultural purposes. It effectively contains livestock, secures crops, and offers structural stability.

-Crafts and DIY Projects: The wire's malleability allows for creative exploration in crafts, DIY projects, and artistic endeavors, including wire sculptures, jewelry making, and other wire art forms.

Packing

Wholesale GI Construction Use Iron Wire Suppliers

FAQ

1. who are we?
We are based in Hebei, China, start from 2010,sell to South America(50.00%),Mid East(20.00%),Africa(15.00%),North America(10.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Nails,Steel Wire,Wire Pipe,Wire Mesh,Malleable Iron Fitting

4. why should you buy from us not from other suppliers?
The products are mainly exported to Africa, European and American markets and South America; the company has its own stable cooperative factory, the product quality is first-class in the country, and has a good reputation in the international market.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR,CNY;
